Flyball Boxes

I'm currenly offereing 3 styles of flyball boxes. A Standard, Deluxe and Flat Front. All three come in 2 and 4 hole configurations.

Please contact me for price and availability

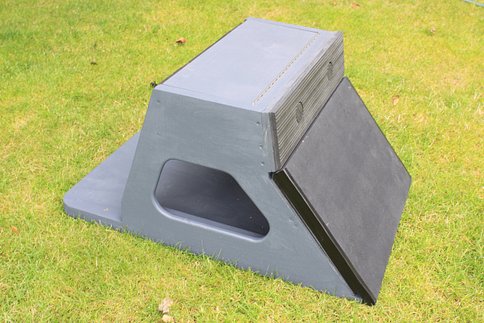

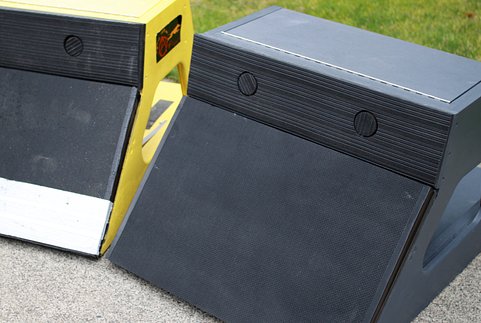

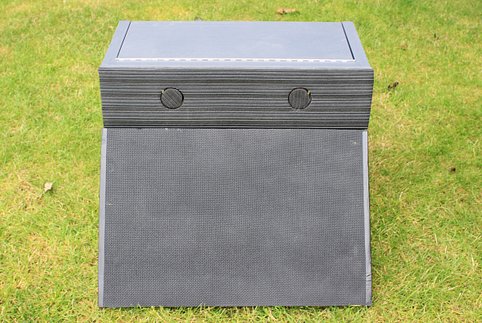

Flat Front [Single Plane Pedal] Box

This is a new design I've been developing for since 2019. This box design replicates wall or ramp work. The ball holes are also closer to the box line therfore the dog travels less distance. It also encouargces less "hang time" of the pedal which some dogs can do if the pedal is slopped back to much.

This style of box can be made in the simplifed single bottom pivot or double pivot (aka Split Pedal) design.

It comes in 2 & 4 hole configuration. Made from High Grade Baltic Birch Plywood, Aluminium Thrusters.

Plans are also available to make this exact box.

Special features:

• 24" Wide x 18" High x 32" Long - As shown
  (Larger Boxes can be requested)
• 2 layers of Standard 3/8" Anti-Faigue Matting on the entire pedal,

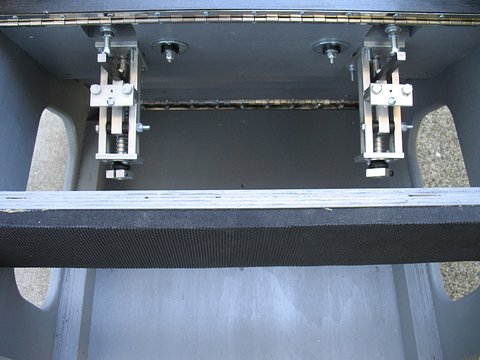

• Micro adjust Pedal-to-Thruster delatch arm,

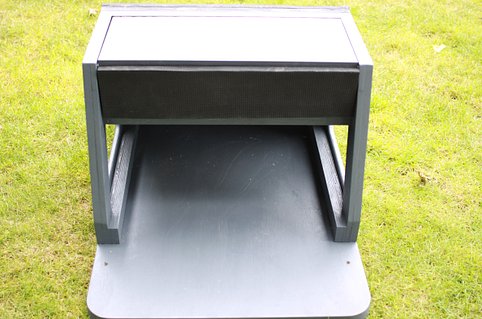

• Extra thick and longer box loader platform (to prevent tipping)
• Comes painted with grip tape on the bottom.
• Ball hole offsets and hole diameter can be altered to suit or can be made to my recommendations,
• Removable pedal; This allows you to quickly move the pedal forward (with out removing the thrusters) so you can repair the rubber and cut the ball hole out perfectly from the back side,
• Protective pedal top cap (Prevents fingers or paws geting caught between the pedal and the box frame when the pedal gets pressed.)
• Adheares to NAFA box specifications,
• 24"w x 18"H - 2 hole box weighs ~40lbs, 4 hole ~48lbs.


Alternate box sizes and alterations can be requested.

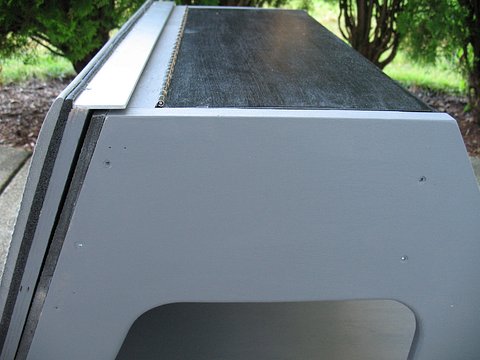

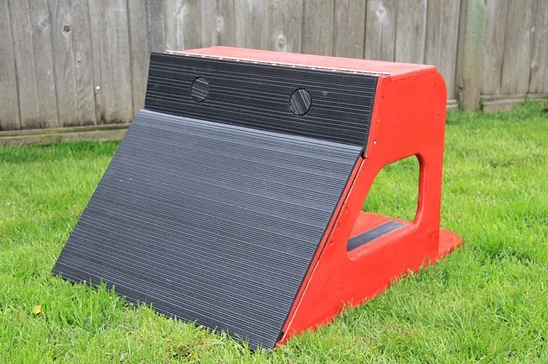

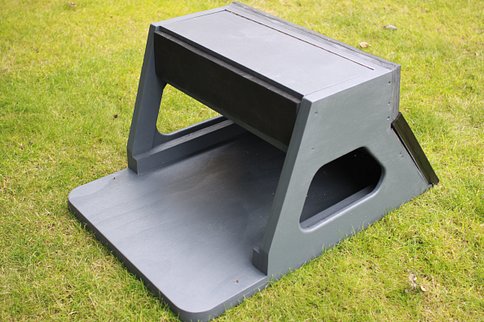

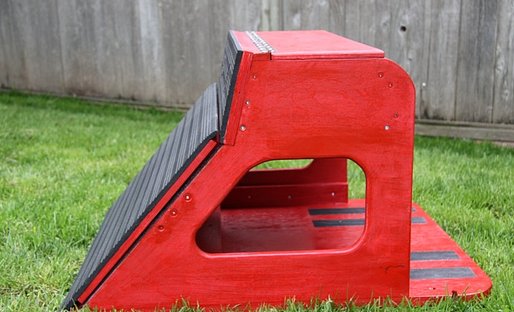

Deluxe Box

This Deluxe Flyball box that has been in production since 2012. Many elite teams are using this exact box.
It comes in 2 & 4 hole Configuration. Made from High Grade Baltic Birch Plywood, Aluminium Thrusters.

Special features:

• 2 layers of Standard 3/8" Anti-Faigue Matting on the ball face,
• Special pedal matting ~1" thick that will last 1-2 years,

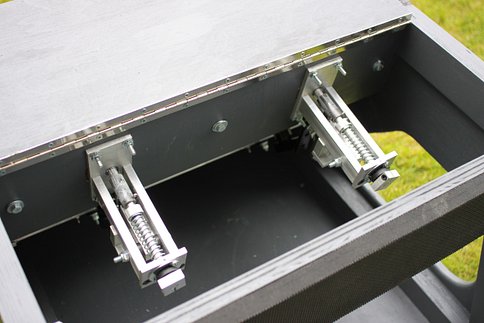

• Micro adjust Pedal-to-Thruster delatch arm,
• Extra thick and longer box loader platform (to prevent tipping)
• Comes painted with grip tape on the bottom.
• Extra cross bracing to add weigh and reduce flex,
• Ball hole offsets and hole diameter can be altered to suit or can be made to my recommendations,

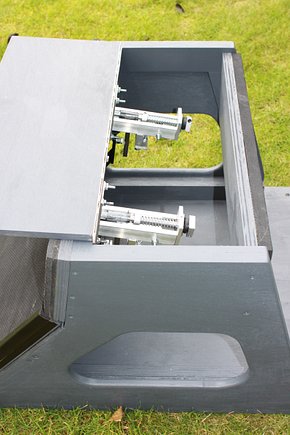

• Removable ball face; this allows you to quickly remove the ball face (with out removing the thrusters) so you can repair the rubber and cut the ball hole out perfectly from the back side,
• Has no lip/wedge on the pedal,
• Adheares to NAFA box specifications,
• 2 hole box weighs ~60lbs, 4 hole ~70lbs; Room upfront, below the pedal to add more weight if desired.
•

*** Alternate box sizes and alterations can be requested.

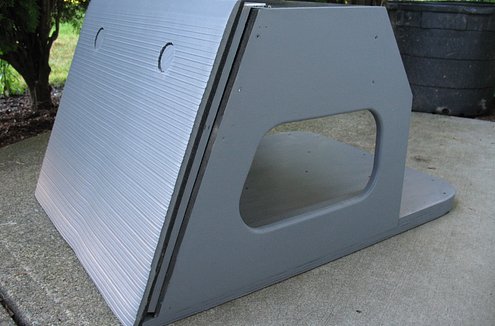

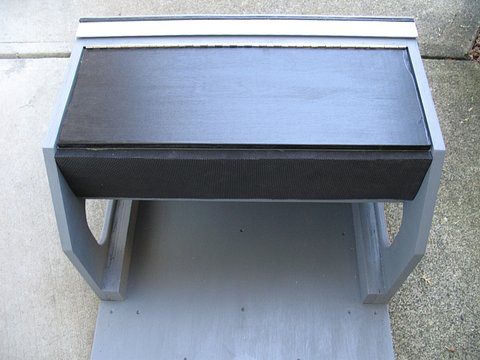

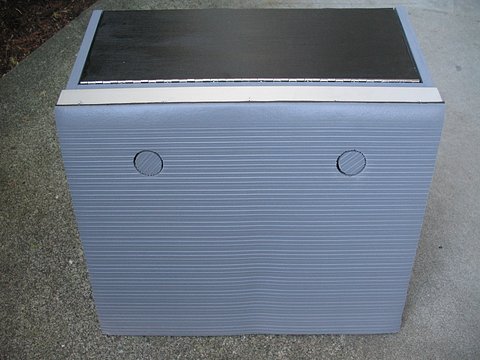

Standard box

This Standard Flyball box that has been in production since 2006. It comes in 2 & 4 hole Configuration. Made from High Grade Baltic Birch Plywood, Aluminium Thrusters.

Plans are also available to make this exact box.

Featrues:

• 1 layers of Standard 3/8" Anti-Faigue matting on the ball face and pedal,

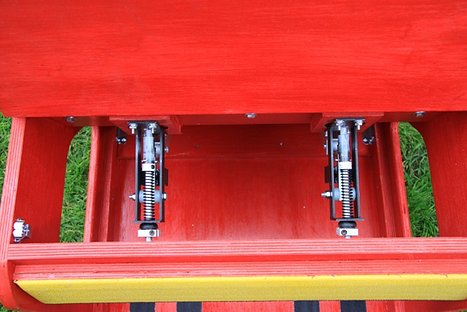

• Standard aluminum roller bearing pedal-to-thruster de-latch arm,
• Comes un-painted;  it can be painted for a small fee,
• Ball hole offsets and hole diameter can be altered to suit or can be made to my recommendations,
• Removable ball face,
• has no lip/wedge on the pedal,
• Adheares to NAFA box specifications,
• 2 hole box weighs ~45lbs
